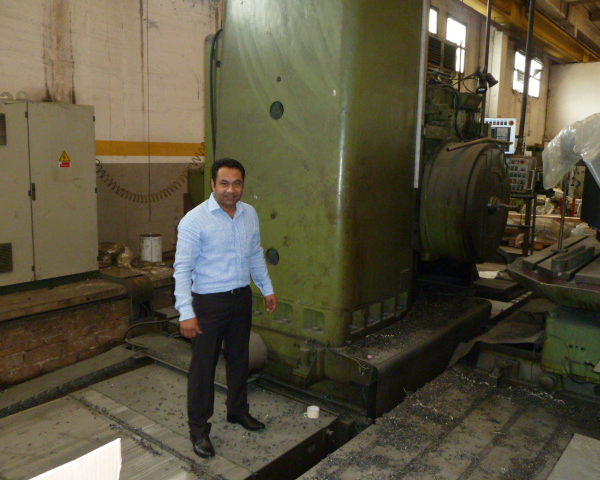

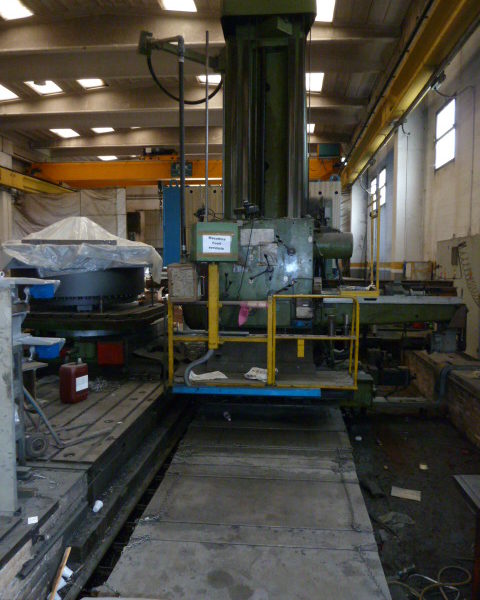

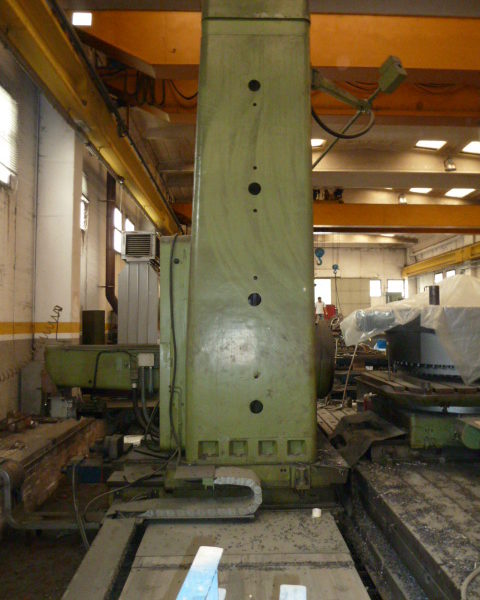

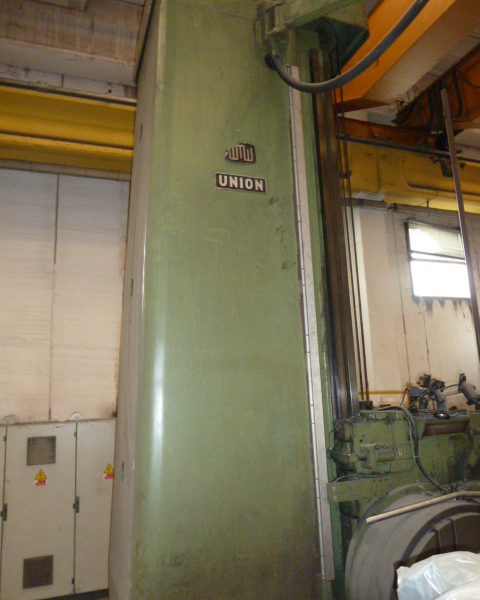

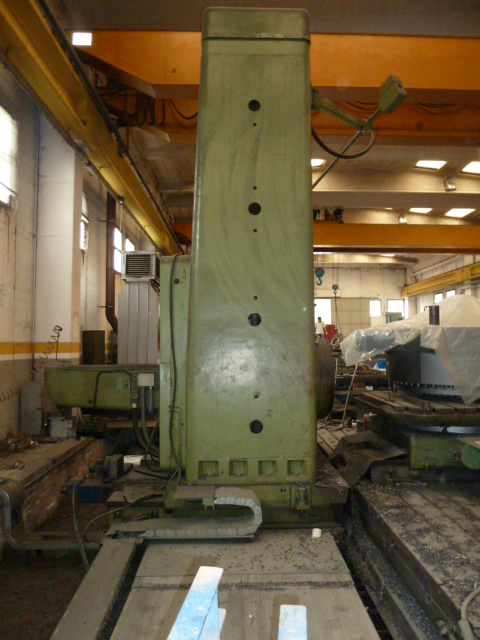

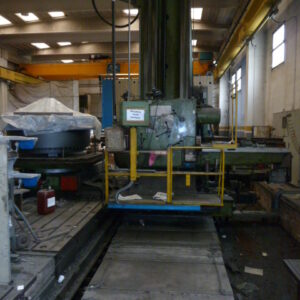

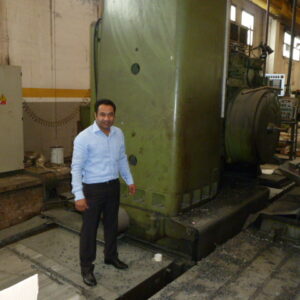

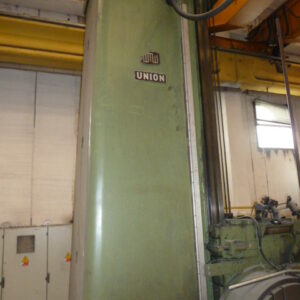

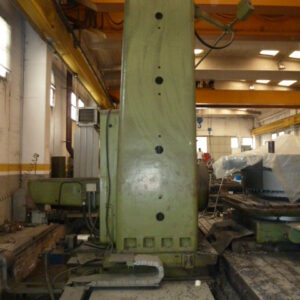

Horizontal Boring Mill Model: BFP 160/1

Make- WMW-UNION

Model: BFP 160/1

YOM: 1979 ( Overhauled in 2006)

Spindle Diameter ………………….. 160mm
Taper In Spindle ………………… .. ISO 50
Vertical Head Travel, Y-Axis …….. 3000 mm
Column Travel, X-Axis ……………. 6500 mm
Spindle Travel, Z-Axis …………….. 1250 mm
Cross Column Travel, W-Axis …… 510 mm

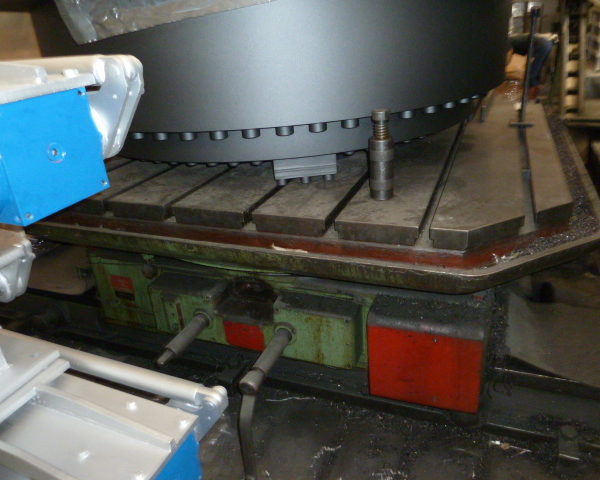

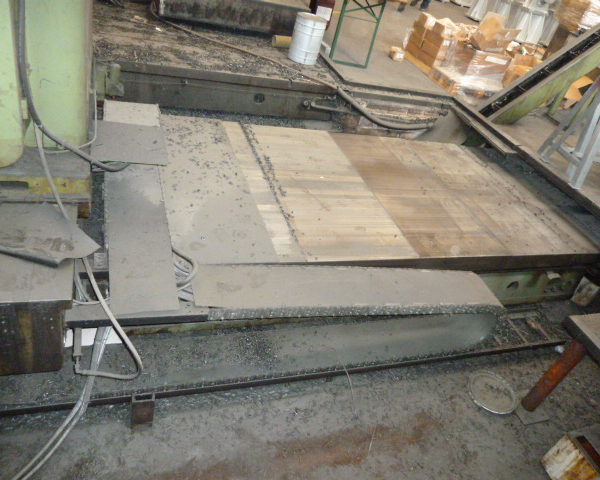

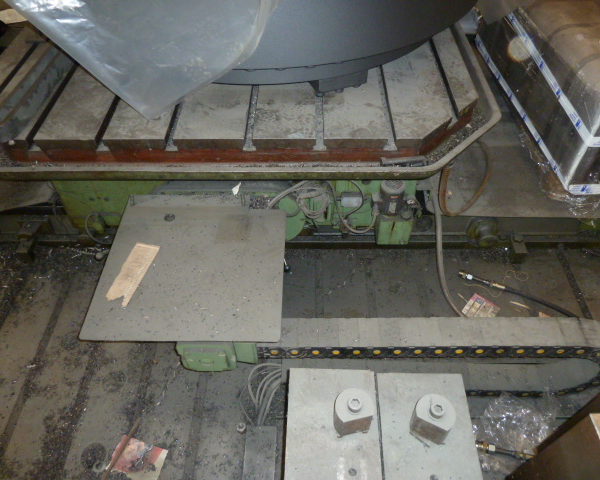

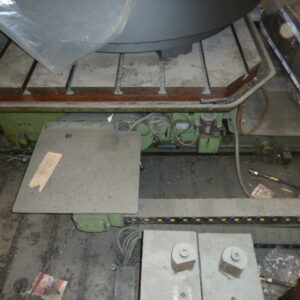

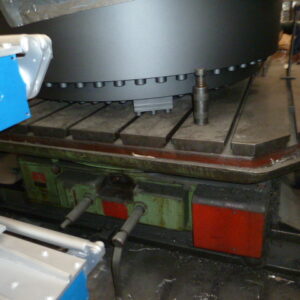

Rotary Table …………………………2200 mm x 2200 mm
Table Weight Capacity ……………. 22 tons
Rotary Table Infeed ……………….. 1000 mm

EQUIPPED WITH:

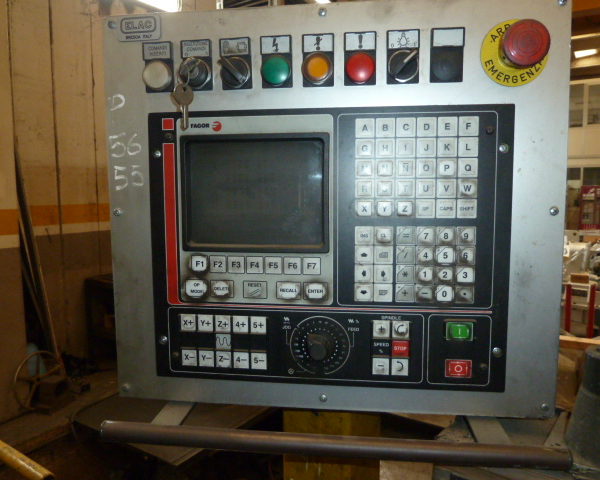

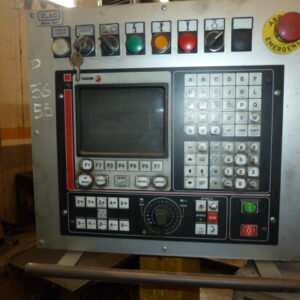

Fagor DRO

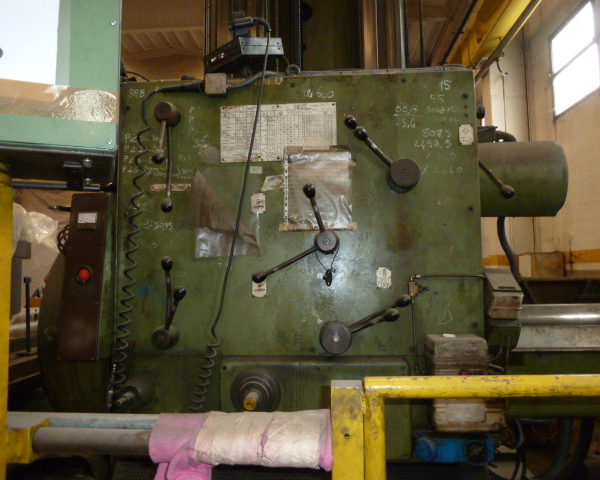

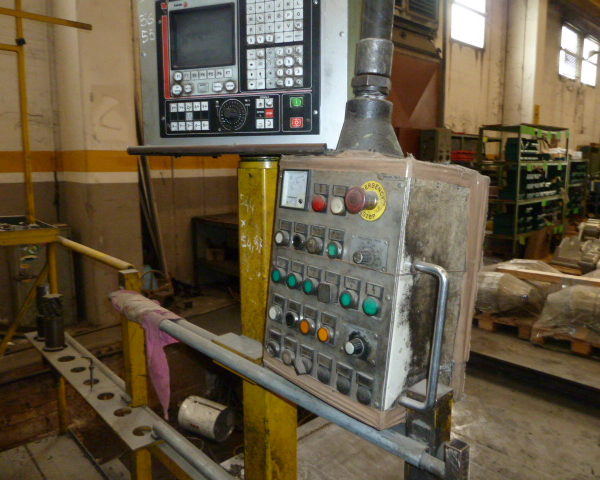

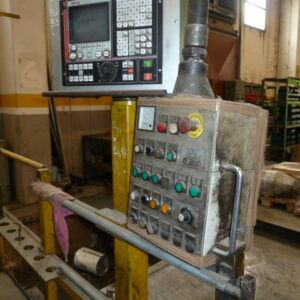

Full Pendant Controls

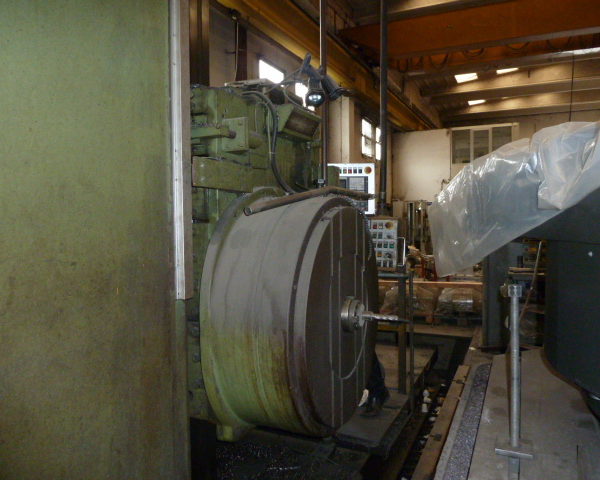

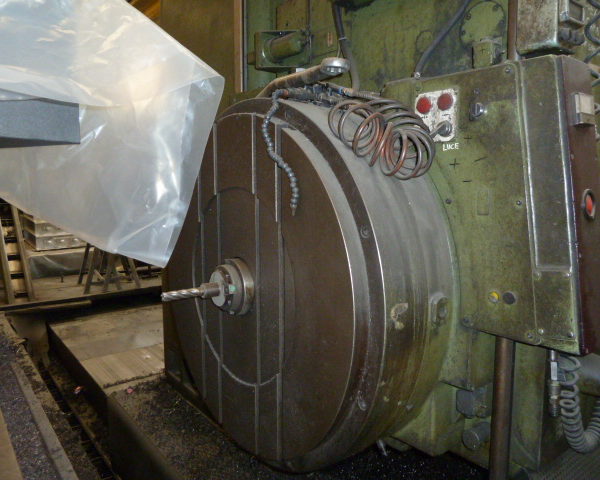

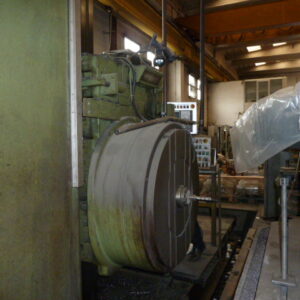

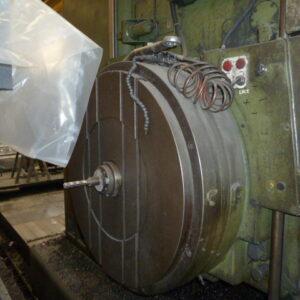

Facing Chuck ( 980mm)
NO FLOOR PLATES

This machine has worked very little and is really in TOP class working conditions.
