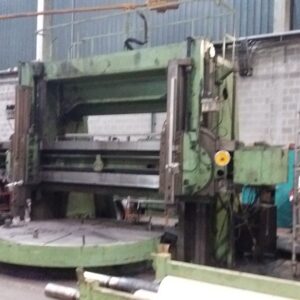

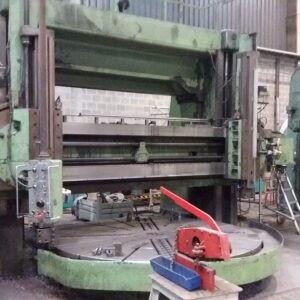

Vertical Turret Lathes: STANKO 1532

Max. turning diameter, mm 3200
Faceplate diameter, mm 2800
Max. turning height, mm 1600
Max. workpiece weight, kg 22000
Number of tool slides 2
Movement of vertical support, mm:
– Vertical 1200
– Horizontal 1720
Support movement per limb, mm:
– Horizontal 2,5
– Vertical 2,5
Supports possible work angle, deg. 30
Chuck speed, rpm 1,25…63
Main drive power, kw 55
Machine dimensions, mm 5485 x 6120 x 4910
Machine weight 46 tons
