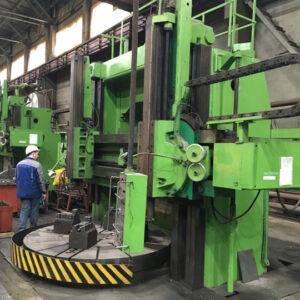

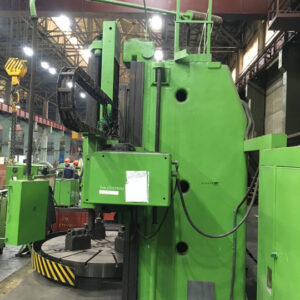

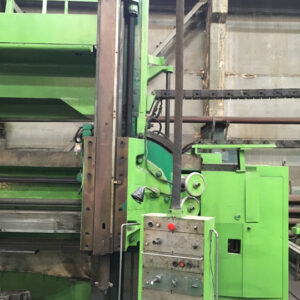

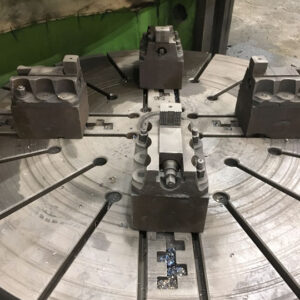

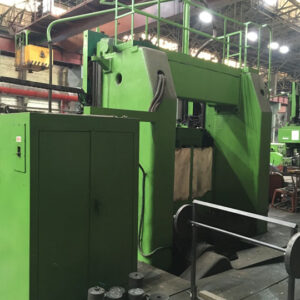

Vertical turning lathe SEDIN 1525

Spefication:

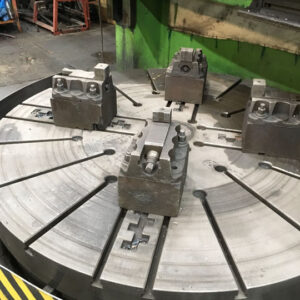

Table diameter: 2250 mm
Distance between table and ram: 0 – 1780 mm
Distance between table and lower surface of traversal beam: 400 – 1640 mm

WORKPIECE
Max swing diameter: 2500 mm
Max work-piece height: 1600 mm
Max work-piece weight: 11400 kg

CARRIAGE

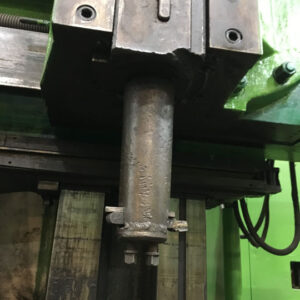

Max ram travel: 1200 mm
Max horizontal travel of carriage: 1390 mm
Max swivel angle: 30 degrees
Max distance between axis of ram: 560 mm
Max knife intersection: 40 x 60 mm
Seat diameter ( metric cone ): 80 mm

MECHANICAL UNIT
Carriages number and type: 2 vertical – ram type
Table speeds number: 18
Table speeds range: 1.6 – 80 rpm
Carriages feeds number: 16
Carriages feeds range: 0.09 – 16 rpm
Rapid feeds of carriage: 10 – 1780 mm/min
Traversal beam feeding: 360 mm/min

MOTORS AND OVERALL DIMENSIONS
Main motor 40 kW , 1500 rpm
Traversal beam feeding motor: 5.2 kW , 1500 rpm
Traversal beam clamping motor: 2 kW, 1500 rpm
Carriages feeding motors ( 2 nos ): 3 kW , 1500 rpm
Lubrication unit motor: 1.7 kW, 1500 rpm
Dimensions: 5065x5280x4910 mm
Machine weight: 35500 kg
