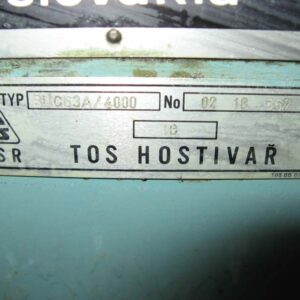

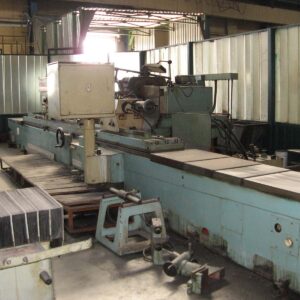

Cylindrical Grinders: TOS 63A/4000
Two years ago the basic overhauling of the machine was done by German technicians.
Grinding length 4000 mm
Grinding dia 630 mm
Centre height 315 mm
Workpiece weight 2500 kg

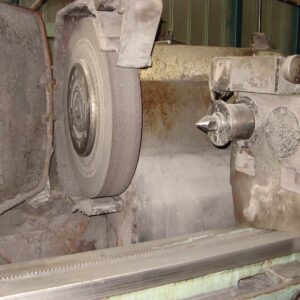

Grinding wheel 750x100x305 mm
Grinding spindle speed 840 / 970 U/min

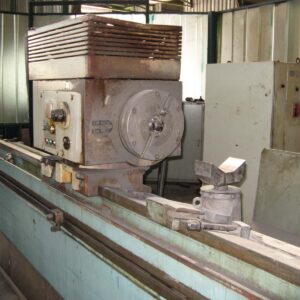

Work piece spindle speed 8 – 315 U/min
Table speed -stepless- 0,01 – 3,6 m/min
Grinding head swivelling 90 degrees, taper Morse 6
Grinding spindle drive 15 kW
electrics – voltage/frequency 380 / 50 V/Hz
weight of the machine ca. 13,7 t
dimensions of the machine ca. 10 x 3,4 x 2 m
total power requirement 31 KVA
Available accessories: 2 steadies, 5 grinding wheels and centers.
The machine is in excellent working condition.
